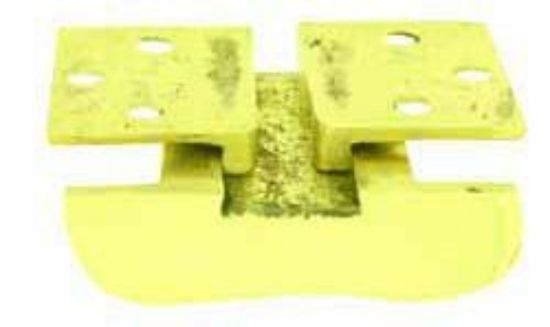

Dovetail Table Leaf Slide

19th Century : Dovetail table leaf slide. Used for holding together table leaves and closing up unsightly gaps in a table top.
£80.96
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

(Note: Measurements are outside max. dimensions unless stated otherwise).

19th Century : Dovetail table leaf slide. Used for holding together table leaves and closing up unsightly gaps in a table top.

Option : Six 5/8" No. 6 slotted countersunk colour-matched brass screws.

FORK:
Height of shaped banjo front 17mm. (5/8")
Outside width of shaped banjo front 57mm. (2 3/16")
Outside width of slide 32mm. (1 1/4")
Depth of slide (from rear of banjo front to back of slide) 36mm. (1 3/8")
Width of dovetail at front 17mm. (5/8") tapering to 19mm. (3/4") at rear.

PLATES
Length 31mm. (1 3/16")
Width 27mm. (1 1/16")

Combined thickness of fork slide + plate = 8.5mm. (5/16")

Note : The design of these clips is unsprung, and the fork relies on slightly tapering dovetail wedges to lock tightly in place.

Available only in sets of one fork and two clips. (Sorry, but we do not split up sets for sale).
