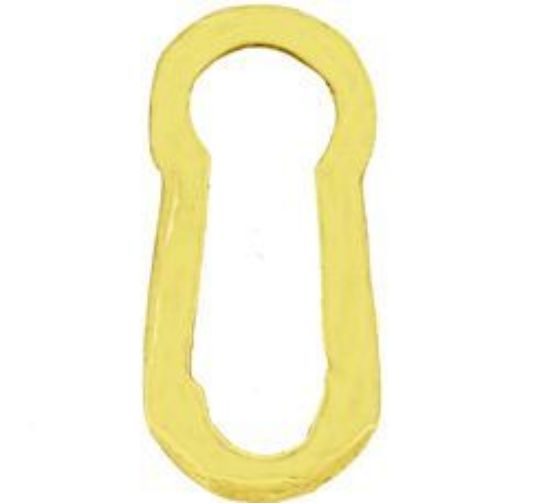

Escutcheon - English Flanged Thread

18th Century : Typical 18th Century English style thread escutcheon with very small 0.5mm flange overhang.
£3.18
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

(Note: Measurements are outside max. dimensions unless stated otherwise).

18th Century : Typical 18th Century English style thread escutcheon with very small 0.5mm flange overhang.

Option : This casting is supplied at a budget price with a basic machine tumble polished finish which is rather dull caused by minute pitting from bead blasting. We can buff polish by hand to a smooth finish as an option if selected by clicking on the OPTION box above, or supply machine polished if left unticked.

OUTSIDE
Height 18mm. (11/16")
Insert width top 7.5mm. (5/16")
Insert width base 7.5mm. (5/16")
Depth 2mm. (1/16")
Thickness of flange (variable) 2mm. (1/16")

KEYHOLE
Height 24.5mm. (15/16")
Diam. of hole 5mm. (3/16")
Width at narrowest part of neck 4mm. (3/16")
Width at base of taper 5mm. (3/16")

Usually glued in or could be pinned from inside flange.
