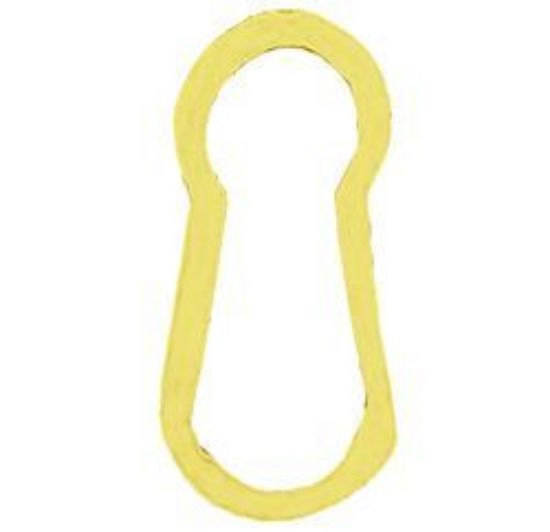

Escutcheon - Plain Thread

(Note: Measurements are outside max. dimensions unless stated otherwise).

18th Century : Plain thread escutcheon.

Option : This casting is supplied at a budget price with a basic machine tumble polished finish which is rather dull caused by minute pitting from bead blasting. We can buff polish by hand to a smooth finish as an option if selected by clicking on the OPTION box above, or supply machine polished if left unticked.

OUTSIDE
Height 20mm. (3/4")
Width top 8.5mm. (5/16")
Width base 9mm. (5/16")
Depth 3.5mm. (1/8")
Thickness (variable) 1.5mm. (1/16")

KEYHOLE
Height 17mm. (5/8")
Diam. of hole 6mm. (1/4")
Width at narrowest part of neck 4mm. (3/16")
Width at base of taper 6.5mm. (1/4")

Usually glued in or could be pinned from inside flange.
