Escutcheon - Plain Thread

(Note: Measurements are outside max. dimensions unless stated otherwise).

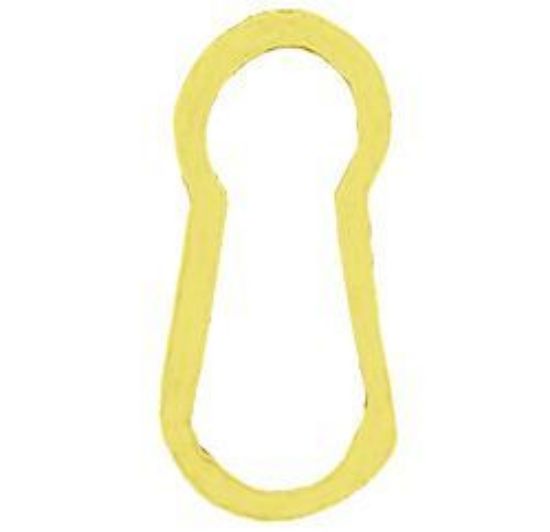

18th Century : Plain thread escutcheon.

Option : This casting is supplied at a budget price with a basic machine tumble polished finish which is rather dull caused by minute pitting from bead blasting. We can buff polish by hand to a smooth finish as an option if selected by clicking on the OPTION box above, or supply machine polished if left unticked.

OUTSIDE
Height 20mm. (3/4")
Width top 9mm. (5/16")
Width base 10mm. (3/8")
Depth 4.5mm. (3/16")
Thickness (variable) 1.5mm. (1/16")

KEYHOLE
Height 17.5mm. (11/16")
Diam. of hole 7.5mm. (5/16")
Width at narrowest part of neck 5mm. (3/16")
Width at base of taper 8mm. (5/16")

Usually glued in or could be pinned from inside flange.
