Fingerplate - Fretted - Lattice

Picture of Fingerplate - Fretted - Lattice
Picture of Fingerplate - Fretted - Lattice Picture of Fingerplate - Fretted - Lattice

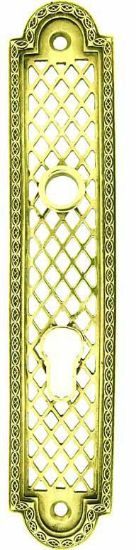

20th Century : Solid finger plate with pierced fretted lattice and keyhole.
£111.94
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
(Note: Measurements are outside max. dimensions unless stated otherwise).

20th Century : Solid finger plate with pierced fretted lattice and keyhole.

Option : Two 1" No.10 slotted countersunk colour-matched brass screws.

BACKPLATE
Height 262mm. (10 5/16")
Width 51mm. (2 ")
Thickness at raised border 6mm. (1/4")
Distance top of backplate to centre of spindle collar 90mm. (3 9/16")
Distance centre of spindle collar to centre pin of escutcheon 74mm. (2 15/16")
Distance centre pin of escutcheon to bottom of backplate 99mm (3 15/16")

SPINDLE COLLAR
Internal diam. 15mm. (9/16")
Depth of extended collar below reverse surface 7mm. (1/4")

KEYHOLE
Height 32mm. (1 1/4")
Diam. of hole 17mm. (5/8")
Width at neck 10mm. (3/8")
