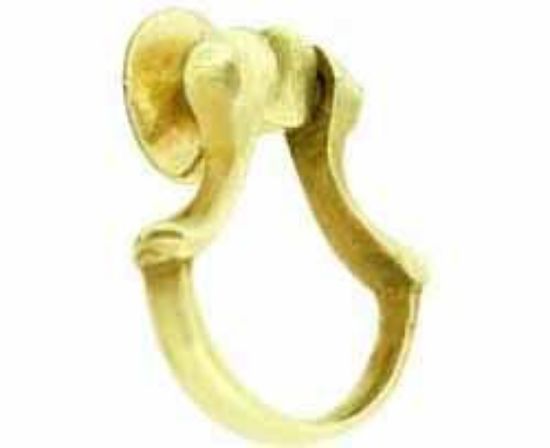

Handle - Dutch Drop - Axe Head

(Note: Measurements are outside max. dimensions unless stated otherwise).

18th Century : Dutch axe drop handle. Classic period design.

Height (from pivot pin to bottom of axe) 22mm. (7/8")
Width (side to side of axe) 25.5mm. (1")
Thickness (variable) 4mm. (3/16")
Backplate diam. 9mm. (5/16")
Protrudes from drawer front 10mm. (3/8")

Steel pivot pin; Steel thread.

It is recommended that if selecting screw thread option, a pilot hole is drilled and pre-cut with a steel screw of slightly smaller size before screwing in the casting to avoid shearing.
