(Note: Measurements are outside max. dimensions unless stated otherwise).

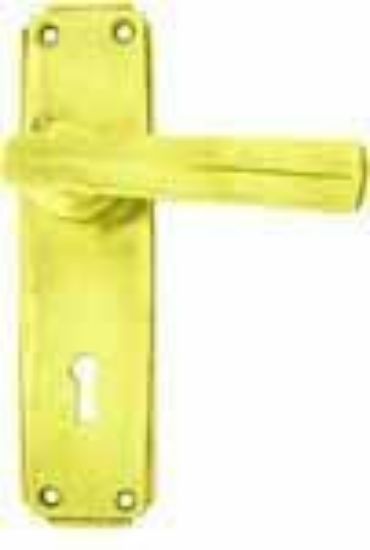

20h Century : Art Deco straight tapered lever handle with subtle stepped backplate edges.
Option : Four 1" No. 6 slotted raised head colour-matched brass screws.
Option: Left or Right handed (picture shows right handed).
BACKPLATE
Height 155mm. (6 3/16")
Width 40mm. (1 9/16")
Depth of plate 5mm. (3/16")
Stepped shaped tapering edge mouldings.
KEYHOLE
Height 19mm. (3/4")
Diam. of hole 7mm. (1/4")
Width of neck 4mm. (3/16")
Pin to side edge 21mm. 13/16")
Pin to bottom edge 48mm. (1 7/8")
LEVER HANDLE
Length (Centre spindle to end) 78mm. (3 1/16")
Depth: (Reverse of backplate to front of lever handle) 46mm. (1 13/16")
Note: there is no return spring on this model. Please be sure that the lock mechanism contains a sprung return in order that the lever handles reposition themselves to horizontal position. Or alternatively tick box if a fitted concealed self-return spring required at additional £42.00.
1 x No. plain 8mm (5/16") square steel spindle supplied per pair or if odd numbers ordered.
Priced individually (not pair).
