Handle - Lever - Art Deco

Picture of Handle - Lever - Art Deco
Picture of Handle - Lever - Art Deco Picture of Handle - Lever - Art Deco

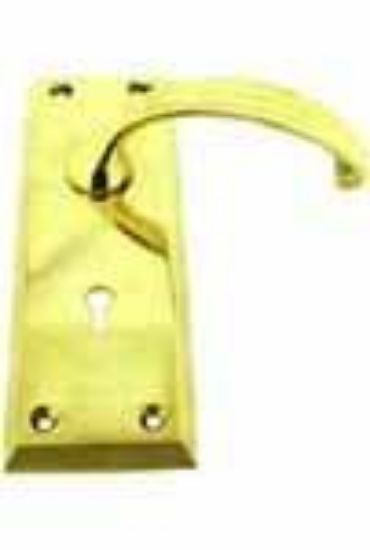

20th Century : Art Deco concave scooped lever handle with rectangular plain hollow backplate raised on chamfered edges. (Left or Right hand).
£111.94
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Product Description
(Note: Measurements are outside max. dimensions unless stated otherwise).

20th Century : Art Deco concave scooped lever handle with rectangular plain hollow backplate raised on chamfered edges. (Left or Right hand).

Option :Four 1" No.8 slotted raised head colour-matched brass screws.

BACKPLATE
Height 169mm. (6 5/8")
Width 55mm. (2 3/16")
Depth of plate 9mm. (5/16")

KEYHOLE
Height 17mm. (5/8")
Diam. of hole 8.5mm. (5/16")
Width of neck 4mm. (3/16")
Pin to side edge 30mm. 1 1/8")
Pin to bottom edge 59mm. (2 5/16")

LEVER HANDLE
Length (Centre spindle to end) 90mm. (3 9/16")
Depth: (Reverse of backplate to front of lever handle) 50mm. (1 15/16")

Supplied with 8mm. (5/16") square steel spindle.

Note: there is no return spring on this model. Please be sure that the lock mechanism contains a sprung return in order that the lever handles reposition themselves to horizontal position. Or alternatively tick box if a fitted concealed self-return spring required at additional £42.00.

1 x No. plain 8mm (5/16") square steel spindle supplied per pair or if odd numbers ordered.

Priced individually (not pair).
