Handle - Plate - Engraved

Picture of Handle - Plate - Engraved
Picture of Handle - Plate - Engraved Picture of Handle - Plate - Engraved

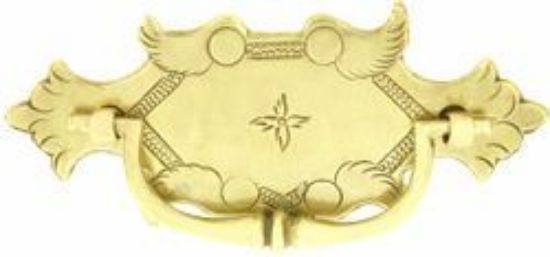

18th Century : Engraved plate handle. Backplate with chamfered edges.
Be the first to review this product
£16.11
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
(Note: Measurements are outside max. dimensions unless stated otherwise).

18th Century : Engraved plate handle. Backplate with chamfered edges.

Option : This casting is supplied at a budget price with a basic machine tumble polished finish which is rather dull caused by minute pitting from bead blasting. We can buff polish by hand to a smooth finish as an option if selected by clicking on the OPTION box above, or supply machine polished if left unticked.

Worn engraved decoration of naive design.

Pommel to pommel centres 60mm. (2 3/8")

OUTSIDE
Height 45mm. (1 3/4")
Width 98mm. (3 7/8")
Thickness (variable) 1mm. (1/16")

HANDLE
Width 74mm. (2 15/16")
Height 22mm. (7/8")
Thickness at bobbin centre ring 8mm. (5/16")

SPLIT PINS
Height of shaft 48mm. (1 7/8")
Internal diam. of ring 3mm. (1/8")
Width 2mm. (1/16")

For matching escutcheon, see "Escutcheons" Ref. 06004c.
