Handle - Plate - Oval

Picture of Handle - Plate - Oval
Picture of Handle - Plate - Oval Picture of Handle - Plate - Oval

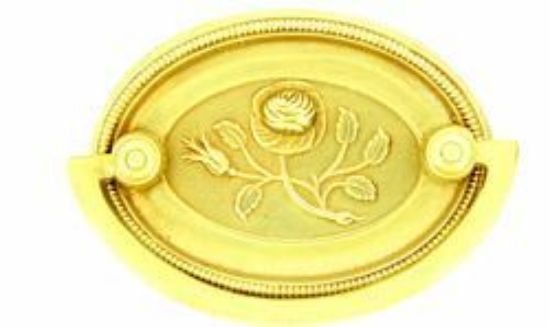

19th Century : Oval plate with 'D' handle.
£16.11
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
(Note: Measurements are outside max. dimensions unless stated otherwise).

19th Century : Oval plate with 'D' handle.

Concave Rose on fine engraved background with raised bobbin edge over steep chamfered sides.

Option : This casting is supplied at a budget price with a basic machine tumble polished finish which is rather dull caused by minute pitting from bead blasting. We can buff polish by hand to a smooth finish as an option if selected by clicking on the OPTION box above, or supply machine polished if left unticked.

Pommel to pommel centres 49mm. (1 15/16")

BACKPLATE
Centres : 49mm. (1 15/16")
Height 47mm. (1 13/16")
Width 63mm. (2 1/2")
Depth 4.5mm. (3/16")

POMMEL
Diam. 9mm. (5/16")
Height 30mm. (1 1/8")
Head 9mm. (5/16") + square shaft 12mm. (7/16") + 9mm. (5/16") threaded rod.
Internal pommel hole diam. 4.5mm. (3/16")
Square shaft 4mm. (3/16") x 4mm. (3/16")

HANDLE
Width 69mm. (2 3/4")
Inside width between peg ends 47mm. (1 13/16")
Height 27mm. (1 1/16")
Thickness 4mm. (3/16")
End pegs diam. 3mm. (1/8") depth 6mm. (1/4")

Original would have been a pressed plate handle.

Supplied with correct period brass round nuts.
