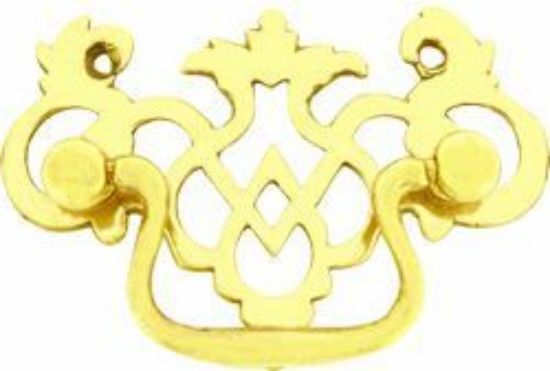

Handle - Plate - Pierced

(Note: Measurements are outside max. dimensions unless stated otherwise).

19th Century : Plate handle in style of Chippendale period with classic pierced and fretted design.

Option : This casting is supplied at a budget price with a basic machine tumble polished finish which is rather dull caused by minute pitting from bead blasting. We can buff polish by hand to a smooth finish as an option if selected by clicking on the OPTION box above, or supply machine polished if left unticked.

Pommel to pommel centres 59mm. (2 5/16")

BACKPLATE
Outside height 64mm. (2 1/2")
Outside width 95mm. (3 3/4")
Thickness 2mm. (1/16")

HANDLE
Width 64mm. (2 1/2")
Inside width between peg ends 50mm. (1 15/16")
Height 33mm. (1 5/16")
Thickness at bulge 7mm. (1/4")
End pegs diam. 4mm. (3/16")
Depth 7mm. (1/4")

POMMELS
Diam. 11.5mm. (7/16")
Height 39mm. (1 9/16")
Head 15mm. (9/16") + round shaft 8mm. (5/16")+ thread 18mm. (11/16")
Internal pommel hole diam. 4.5mm. (3/16")

Round pommels with plain heads.

Supplied with brass square nuts.
