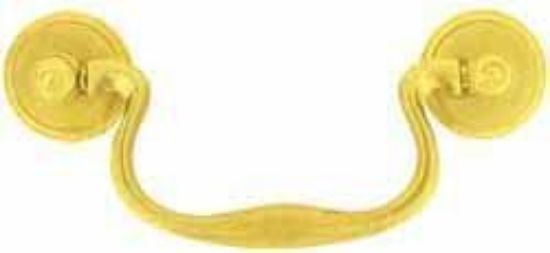

Handle - Swan Neck - Plain

(Note: Measurements are outside max. dimensions unless stated otherwise).

18th Century : Classic swan neck handle with convex hollow button backplates.

Option : This casting is supplied at a budget price with a basic machine tumble polished finish which is rather dull caused by minute pitting from bead blasting. We can buff polish by hand to a smooth finish as an option if selected by clicking on the OPTION box above, or supply machine polished if left unticked.

Pommel to pommel centres 71mm. (2 13/16")

HANDLE
Width peg end to peg end 74mm. (2 15/16")
Inside width between peg ends 62mm. (2 7/16")
Height 38mm. (1 1/2")
Thickness at bulge 7mm. (1/4")
End pegs diam. 3mm. (1/8")
End pegs depth 5mm. (3/16")

BACKPLATES
Diam. 26mm. (1")
Height 2.5mm (1/8")
Centre pommel hole 5mm. x 5mm. (3/16" x 3/16")

POMMELS
Height 37mm. (1 7/16")
Head 9mm (5/16") + square shaft 9mm. (5/16") + threaded rod 19mm. (3/4").
Collar diam. 8.5mm. (5/16")
Internal pommel hole diam. 4.5mm. 3/16")
Square shaft 4mm. (3/16") x 4mm. (3/16")

Supplied with correct period round nuts.
