Handle - Swan Neck - Plain

Picture of Handle - Swan Neck - Plain
Picture of Handle - Swan Neck - Plain Picture of Handle - Swan Neck - Plain

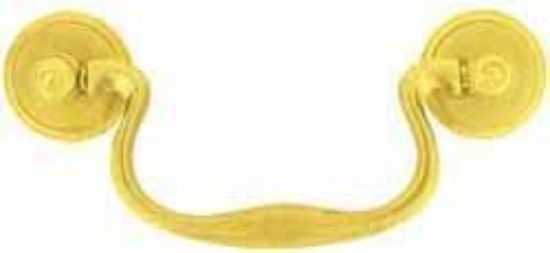

18th Century : Classic swan neck handle with convex hollow button backplates.
£15.90
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
(Note: Measurements are outside max. dimensions unless stated otherwise).

18th Century : Classic swan neck handle with convex hollow button backplates.

Option : This casting is supplied at a budget price with a basic machine tumble polished finish which is rather dull caused by minute pitting from bead blasting. We can buff polish by hand to a smooth finish as an option if selected by clicking on the OPTION box above, or supply machine polished if left unticked.

Pommel to pommel centres 89mm. (3 1/2")

HANDLE
Width peg end to peg end 94mm. (3 11/16")
Inside width between peg ends 77mm. (3 1/16")
Height 39mm. (1 9/16")
Thickness at bulge 9mm. (5/16")
End pegs diam. 4mm. (3/16")
End pegs depth 8mm. (5/16")

BACKPLATES
Diam. 28mm. (1 1/16")
Height 4mm (3/16")
Centre pommel hole 4mm. x 4mm. (3/16" x 3/16")

POMMELS
Height 49mm. (1 15/16")
Head 12mm (7/16") + square shaft 9mm. (5/16") + threaded rod 28mm. (1 1/16").
Collar diam. 8mm. (5/16")
Internal pommel hole diam. 5mm. 3/16")
Square shaft 3.5mm. (1/8") x 3.5mm. (1/8")

Supplied with correct period round nuts.
