Hinge - Cranked Longcase Clock Door

Picture of Hinge - Cranked Longcase Clock Door
Picture of Hinge - Cranked Longcase Clock Door Picture of Hinge - Cranked Longcase Clock Door

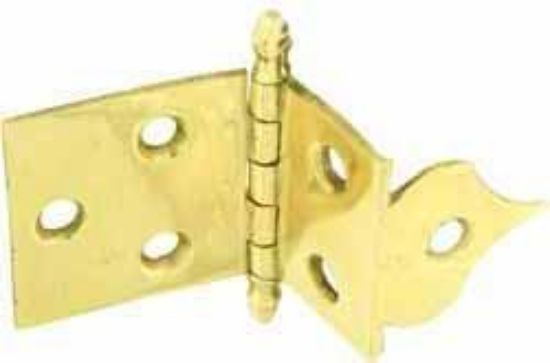

18th Century : Clock door hinge with finial and pendant.
£40.67
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
(Note: Measurements are outside max. dimensions unless stated otherwise).

18th Century : Clock door hinge with finial and pendant.

Option : Six 3/4" No. 6 slotted countersunk colour-matched brass screws.

Height 35mm. (1 3/8")
Total length (open) 59mm. (2 5/16")
Long flap length (edge to centre of knuckle) 36mm. (1 3/8")
Short flap length (edge of return flap to centre of knuckle) 23mm. (7/8")
Return flap length (tip of point to corner of return) 28mm. (1 1/16")

Thickness 2 main flaps (variable) 2mm. (1/16") ; Return decorative flap (variable) 1mm. (1/16")

Opens 190 degrees. Steel pin, 5 knuckles.

Priced individually (not pair).
