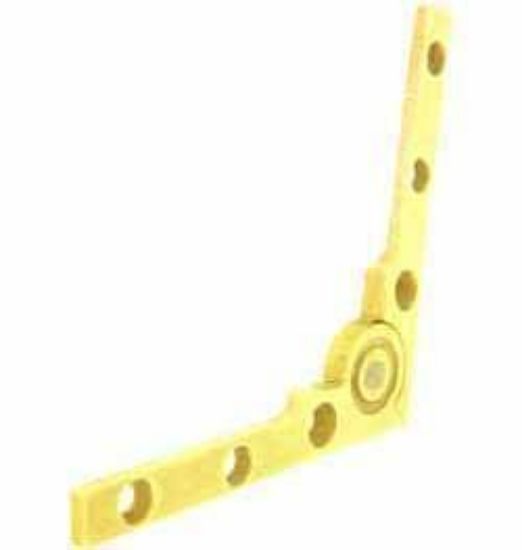

Hinge - Quadrant - Secretaire

Hinge Quadrant
Hinge Quadrant Hinge Quadrants
18th Century : Suitable for secretaire fall.
Be the first to review this product
£16.96
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
(Note: Measurements are outside max. dimensions unless stated otherwise).

18th Century : Suitable for secretaire fall.

Option : Six 3/4" No. 6 slotted countersunk colour-matched brass screws.

Option : This casting is supplied at a budget price with a basic machine tumble polished finish which is rather dull caused by minute pitting from bead blasting. We can buff polish by hand to a smooth finish as an option if selected by clicking on the OPTION box above, or supply machine polished if left unticked.

Length 85mm. (3 5/16")
Width 26mm. (1") (closed).
Thickness (variable) 5.5mm. (3/16") at knuckle, scalloped out to 4mm. (3/16") thick forks.

Note : Opens 100 degrees self-stopped. Will need to be rebated on slight angle for 90 degree fall.

Steel pin.

Priced individually (not pair).
