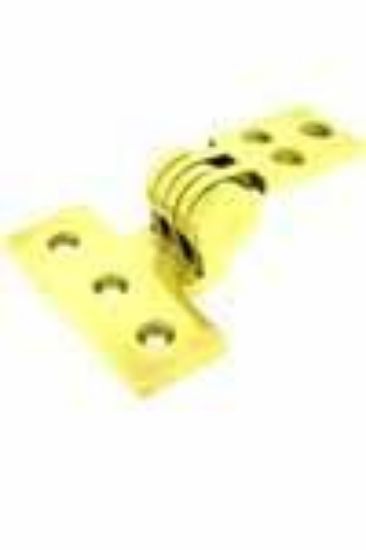

Hinge-T - Shutter - Cranked

(Note: Measurements are outside max. dimensions unless stated otherwise).

19th Century : Heavy duty 5 knuckle shutter 'T' hinge .

Option : Six 1" No.10 slotted countersunk colour-matched brass screws.

Total width (end of cranked 'T' flap to end of straight flap 95mm. (3 3/4") (open)

Height of 'T' section 73mm. (2 7/8")
Height knuckles 28mm. (1 1/16")
Width centre of pin to end of each leaf 48mm. (1 7/8")
Height of cranked step from centre of hinge pin 20mm. (3/4")
Thickness 5.5mm. (3/16")

Opens 270 degrees.

Exterior or interior use.

Note: slightly out of alignment on axis (as original). Distortion should not affect hinge hanging.

Priced individually (not pair).
