(Note: Measurements are outside max. dimensions unless stated otherwise).

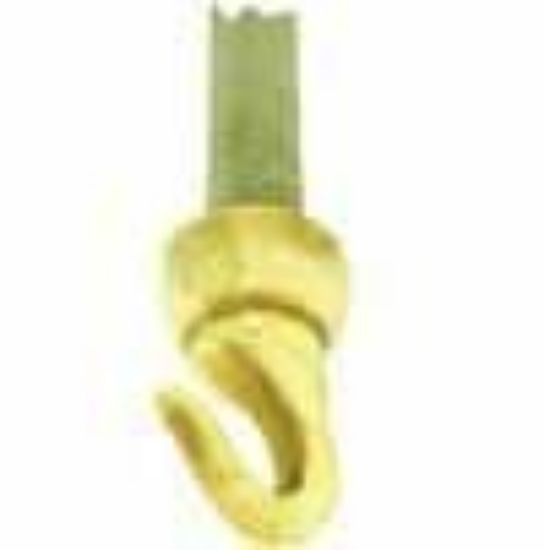

20th Century : Open hook for lightweight use.
Diam. collar 15mm. (9/16")
Overall height top of collar to bottom of hook 27mm. (1 1/16")
Gap in hook 6mm. (1/4")
THREADED ROD LENGTH OPTIONS:
76mm. (3") x 8mm. (5/16") diam.
152mm. (6") x 8mm. (5/16") diam.
279mm. (11") x 8mm. (5/16") diam.
Concealed top hung through joist. Supplied with washer, hex nut and second locking nut. Can be passed through beam / floor joist / tie spacer (if accessible from above) to tighten nut.
NOTE: Although the hook should be capable of supporting loads of up to 15 kilos, we decline responsibility of fixing or hook failure.
Some chandeliers can be very heavy, and to avoid support failure, since the load bearing capabilities of these products is variable, we recommend threading a length of load tested 2mm. steel security wire (available from a marine supplier or most hardware superstores) through the links or hang alongside. Secure with an eye bolt into the underside of the ceiling joist, and a shackle onto the chandelier ring to be supported.
The primary load tested support will therefore be the steel security wire (usually up to 120kg) which is reasonably discreet, and the hook will provide the visual effect and beomes the secondary means of support.
