(Note: Measurements are outside max. dimensions unless stated otherwise).

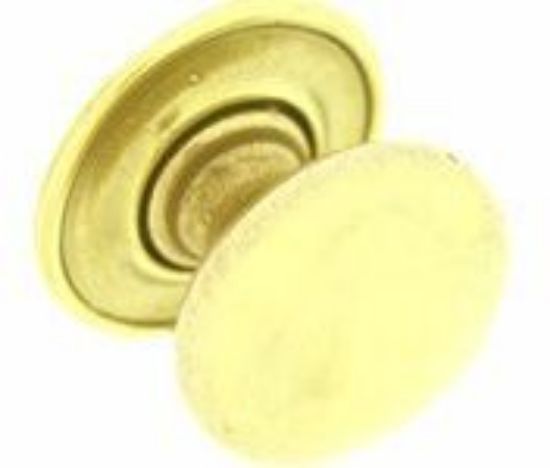

19th Century : Plain shallow dome top with vase shaped tapered neck and flared collar. A solid feel with simple lines.
Option : This casting is supplied at a budget price with a basic machine tumble polished finish which is rather dull caused by minute pitting from bead blasting. We can buff polish by hand to a smooth finish as an option if selected by clicking on the OPTION box above, or supply machine polished if left unticked.
KNOB
Top diam. 23mm. (7/8")
Height top of dome to base of backplate 21mm. (13/16")
Collar diam. 12mm. (7/16")
Threaded shaft length 42mm (1 5/8")
BACKPLATE
Flat backplate with raised inner rim and sunken central rebate.
Diam. 26mm. (1")
Thickness 3mm. (1/8")
Thickness of inner rebate 1mm. (1/16")
Diam. of centre pommel hole 8mm. (5/16")
Diam. of inner rim 13mm. (1/2")
Supplied with slotted round nut.
