(Note: Measurements are outside max. dimensions unless stated otherwise).

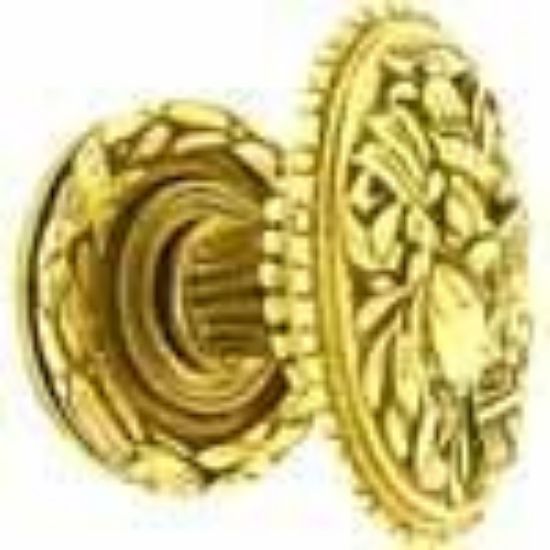

18th Century : Oval door knob with intricate cartouche and secret fixing plate supported on flared reeded lotus leaf column and laurel wreath backplate.
Option : Four 3/4" No.6 slotted countersunk steel screws.
1 x No. plain 8mm (5/16") square steel spindle supplied per pair or if odd numbers ordered.
Height including backplate 48mm. (1 7/8")
KNOB
Length 65mm. (2 9/16")
Width 44mm. (1 3/4")
BACKPLATE
Diam. 50mm. (1 15/16")
SPINDLE
Length to suit maximum door thickness 76mm (3")
A discreet threaded disc inside the base permits the backplate to be screwed tight, allowing the knob to turn without any visible fixings.
Note: there is no return spring on this model. Please be sure that the lock mechanism contains a sprung return in order that the knobs reposition themselves to horizontal position. Or alternatively tick box if a fitted concealed self-return spring required at additional £48.00
Priced individually (not pair).
