(Note: Measurements are outside max. dimensions unless stated otherwise).

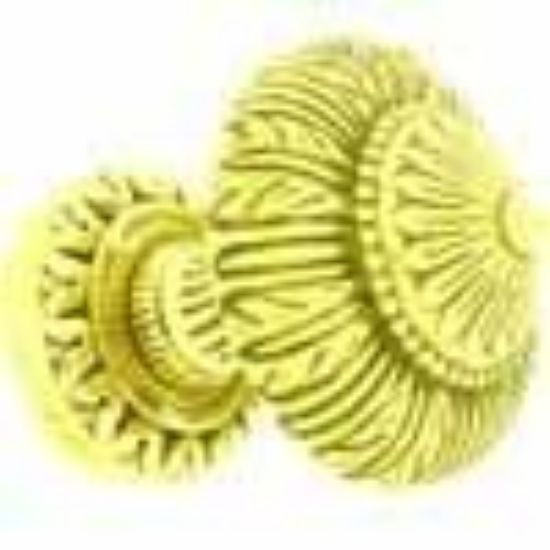

18th Century : Round door knob with intricate foliage pattern and fluted design. Robert Adam style as per the door furniture at Osterley House.
Option : Three 1" No.6 slotted countersunk steel screws.
1 x No. plain 8mm (5/16") square steel spindle supplied per pair or if odd numbers ordered.
KNOB
Diam. 55mm. (2 3/16")
BACKPLATE
Diam. 42mm. (1 5/8")
Height including backplate 68mm. (2 11/16")
SPINDLE
Length to suit maximum door thickness 76mm (3")
A discreet threaded disc inside the base permits the backplate to be screwed tight, allowing the knob to turn without any visible fixings.
Note: there is no return spring on this model. Please be sure that the lock mechanism contains a sprung return. Or alternatively tick box if a fitted concealed self-return spring required at additional £48.00
Priced individually (not pair).
This knob also matches backplates 00729 and 00729c.
