Lock - RH Cut Cupboard & Till Drawer

Picture of Lock - RH Cut Cupboard & Till Drawer
Picture of Lock - RH Cut Cupboard & Till Drawer Picture of Lock - RH Cut Cupboard & Till Drawer

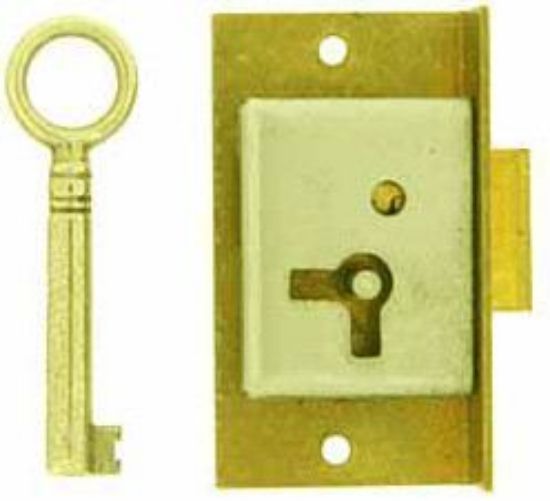

Solid brass right hand cut cupboard lock. Also serves as drawer till lock.
£9.65
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
(Note: Measurements are outside max. dimensions unless stated otherwise).

SPECIAL OFFER PRICE (ONLY 22 LEFT BEFORE DELETION) and ready for dispatch 1 - 4 working days.

Solid brass right hand cut cupboard lock. Also serves as drawer till lock.

Option : Two 5/8" No. 4 slotted countersunk colour-matched brass screws.

LOCK BACKPLATE :
Height 51mm. (2")
Width 28mm. (1 1/16")
Depth top plate 10mm. (3/8")

LOCK MECHANISM BOX :
Height 31mm. (1 3/16")
Width 25mm. (1")
Depth 7mm. (1/4")

PIN :
Pin to edge distance 14mm. (9/16")

No striking plate supplied for this product.

Supplied with 1 steel key.

Note : Some stock with minor rust on steel backing plates and some brass plates slightly tarnished but could be cleaned back to bright brass (see our "Frequently asked questions" section for metal cleaning).
