Window Fastener - Sprung - Dovetail

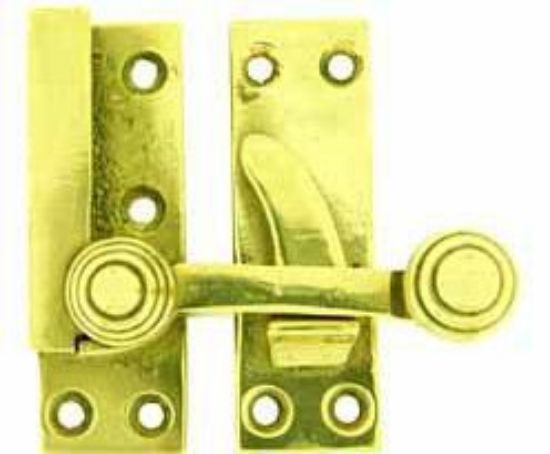

19th Century : Sprung window fastener with bobbin ball lever and dovetail plate.
(Note: Measurements are outside max. dimensions unless stated otherwise).
19th Century : Sprung window fastener with bobbin ball lever and dovetail plate.
Option : Eight 3/4" No. 6 slotted countersunk colour-matched brass screws.
MAIN MECHANISM:
Height of plate 72mm. (2 13/16")
Width of plate 24mm. (15/16")
Width from outside plate edge to outside ball knob when open 74mm. (2 15/16")
RECIPROCATING PLATE:
Height 72mm. (2 13/16")
Width 23mm. (7/8")
Solid casing housing riveted steel spring. All hand made.
The underside of the arm is dovetail rebated which locates and locks over a raised dovetail lug on the reciprocating plate.
|
