(Note: Measurements are outside max. dimensions unless stated otherwise).

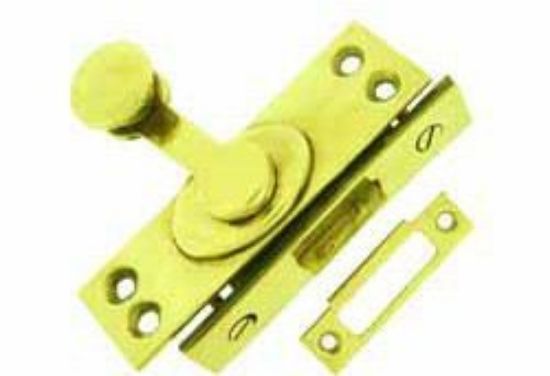

19th Century : Reversible window fastener.
Option : Two 3/4" No. 6 slotted countersunk ; Four 1 1/2" No. 10 slotted countersunk colour-matched brass screws.
MORTICE LATCH COMPONENT
Cover plate:
Height 104mm. (4 1/8")
Width 22mm. (7/8")
Depth from front of brass faceplate to back of steel mortice box 41mm (1 5/8")
Height of steel mortice box 63mm (2 1/2")
Width of steel mortice box 11mm (3/8")
LEVER COMPONENT
Plate height 112mm (4 7/16")
Plate width 33mm (1 5/16")
Steel latch mechanism contains a sprung return.
Note: Mortice latch cover plate and lever plates are not aligned as per original due to off-centred spindle.
Copied from an important English Palladian Country House, this hand-made elegant catch is reversible left or right hand.
|
