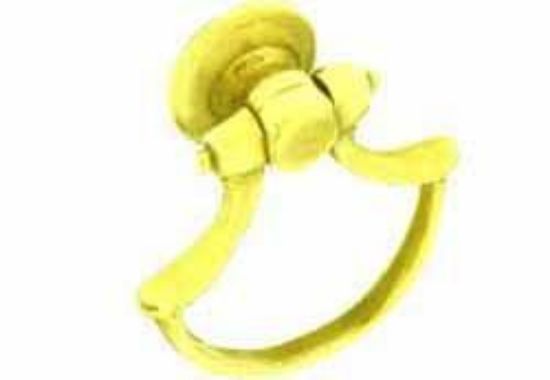

Handle - Dutch Drop - Axe Head

(Note: Measurements are outside max. dimensions unless stated otherwise).

18th Century : Dutch axe drop handle. Classic period design.

Height (from pivot pin to bottom of axe) 22mm. (7/8")
Width (side to side of axe) 33mm. (1 5/16")
Thickness (variable) 4mm. (3/16")
Backplate diam. 15mm. (9/16")
Protrudes from drawer front 12.5mm. (1/2")

Steel pivot pin. Machine thread supplied with slotted round nut.

Cylinder shoulder on shaft 9mm. (5/16")
