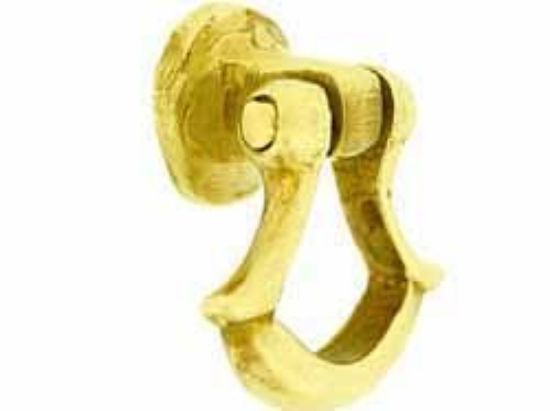

Handle - Small Axe Head Dutch Drop

(Note: Measurements are outside max. dimensions unless stated otherwise).

18th Century : Very small Dutch axe drop handle.

Height (from pivot pin to bottom of axe) 11mm. (3/8")
Width (side to side of axe) 14mm. (9/16")
Thickness (variable) 3mm. (1/8")
Backplate diam. 8mm. (5/16")
Protrudes from drawer front 9mm. (5/16")

Steel pivot pin.

Classic period design.

It is recommended that if selecting screw thread option, a pilot hole is drilled and pre-cut with a steel screw of slightly smaller size before screwing in the casting to avoid shearing.
